Bicycling - Shimano Road Bike Parts Compatibility - 2024

Shimano compatibility charts come in handy for assembling your bicycle, planning purchases, or troubleshooting. We have included their compatibility charts from 2024 here. The source of these charts is the Shimano archive.

Shimano Compatibility Charts Main Page
2024 Compatibility Charts
Di2 electronic shifting Compatibility Reference
Disc brakes Compatibility Reference charts
Cycling Components Store
Notes on Compatibility of Components
Use the Chart Magic app - find compatible parts quickly
Compatibility Tables (with derailer capacities, etc.)
Chainrings reference

Compatibility Chart 2024 - Front

chart color code: Blue items = new for this year. Brown items = no longer in production (after this year).

Compatibility Chart 2024 - Rear

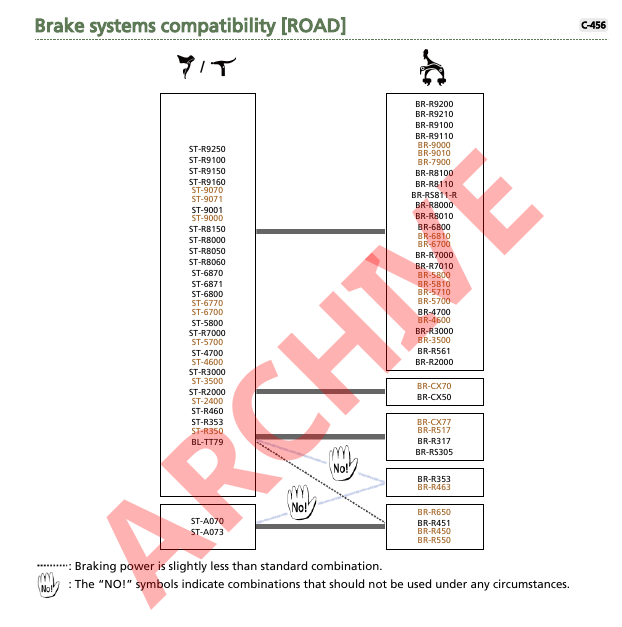

Compatibility Chart 2024 - Brakes

Compatibility Chart 2024 - Di2

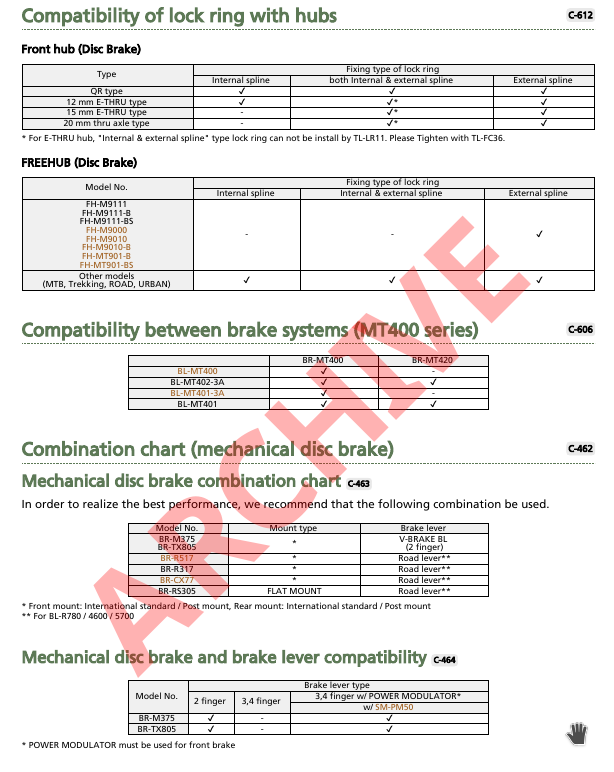

Compatibility Chart 2024 - Disc

Brake Pads compatibility:

Disc Brake Mount Adapters:

Compatibility Chart 2024 - Hydraulics

Hydraulic hose compatibility:

Compatibility Chart 2024 - Chain Capacity

(chainring and rear derailer sprocket teeth capacities)

Release Notes

For 2024, Shimano has released new 12-speed 105 level componentry for the first time!
